VanLiFe 48V 100Ah Stackable
Description and Specifications
The VanLiFe range is a highly capable battery, able to power a 8000w inverter. With its impressive power, it provides reliable and efficient electricity to your devices and appliances, making it a convenient and essential addition to any travel or off-grid setup.
This product features a sealed enclosure made of zinc plated and powder coated steel with a vent outlet that meets the installation standards of the new. It also includes high and low temperature, voltage, and over current protection, as mandated by AS/NZS3001.2:2022 installation standards.

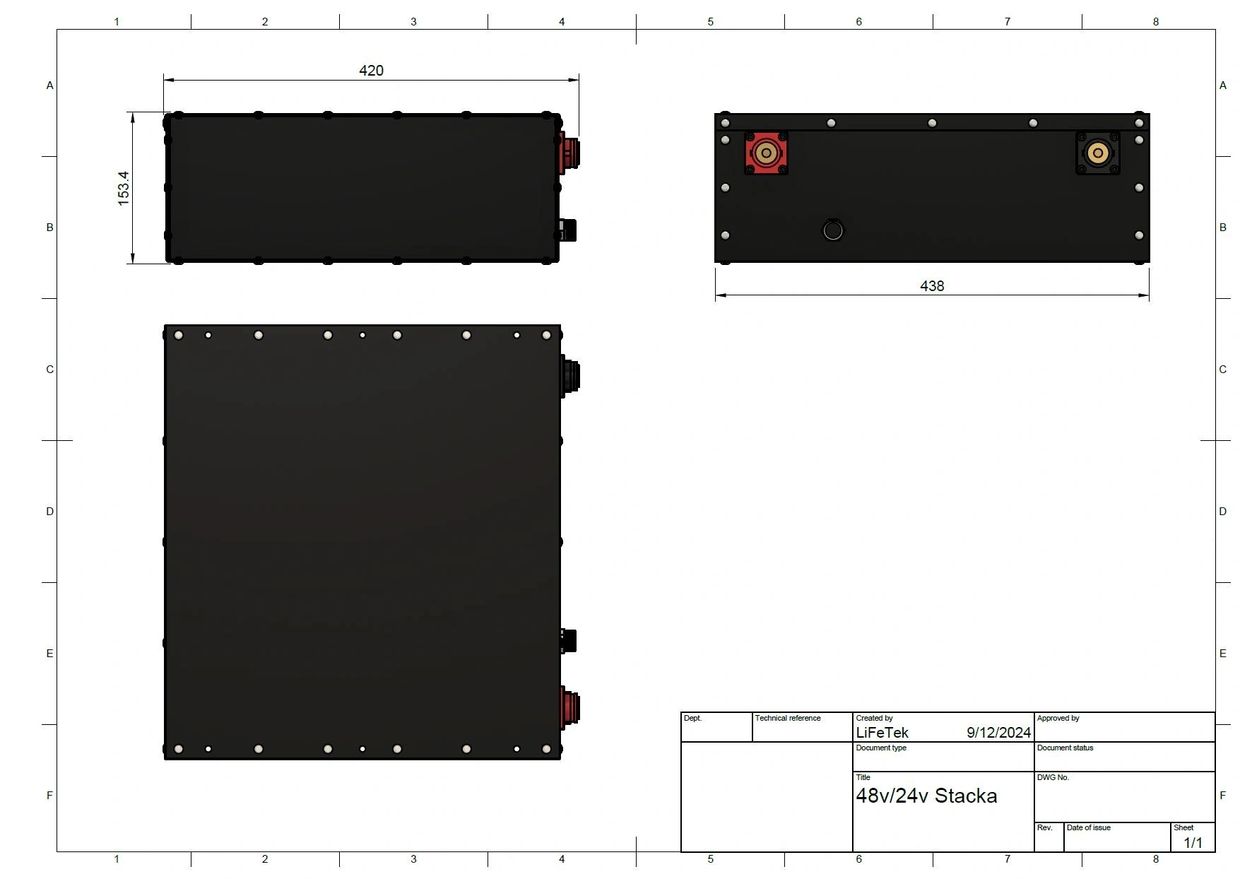

Convenient mounting holes for fixing down and stacking units are integrated into the design.
Features:
Active and Passive cell balancing
BMS continuous discharge: 200A
BMS Max Charge Rate: 100A
Recommended Standard Constant Charge Rate: 50A
BMS over current protection: 220A for 10 seconds, reset 35 seconds
BMS charge over current protection: 105A for 10 seconds, reset 35 seconds
Low voltage discharge shut down: 40V restart 42V
High Voltage charge disconnect: 60V restart 59.2V
Low temp charge disconnect: 1°C reset 2°C
Low temp discharge disconnect: -20°C reset -15°C
High temp charge disconnect: 55°C reset 50°C
High temp discharge disconnect: 60°C reset 55°C
Charging:
Bulk Charge: 56.8V – 58.4V (ideal: 57.6V)
Absorption: 56.8V – 58.4V (ideal: 57.6V)
Float: 53.6V – 54.4V (ideal: 54V)Terminal size: M10
Vent outlet thread: 1/2 inch male BSP thread
Sealed back riveted case made from zinc plated and powder coated steel with high temp sealant
Weight: 48kgs
The automotive-grade cells used in this model are designed to withstand 3000 cycles at 80% depth of discharge under heavy electric vehicle use.
For instance, cycling the battery daily—bringing it down to 20% state of charge and fully recharging it—would take approximately 8.2 years to complete 3000 cycles before the battery is regarded as end of life, degrading to 80% of its original capacity while remaining operational for some time thereafter.
In less demanding applications such as caravan storage, you can expect longer cycle life.
