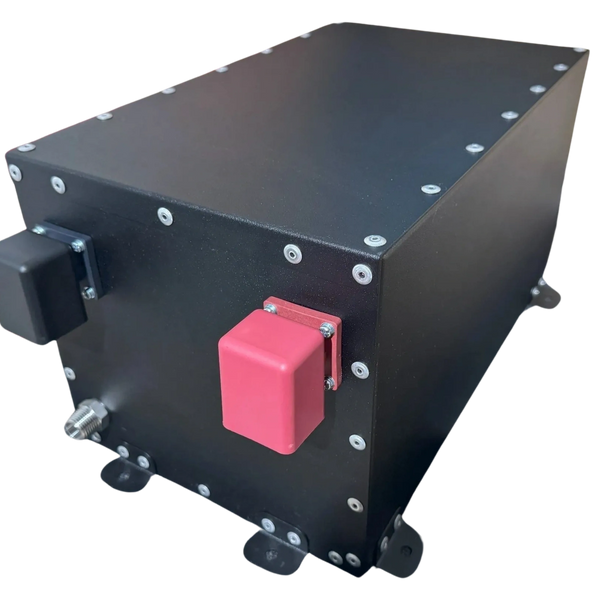

24v VanLiFe 200Ah
Description and Specifications
200A BMS option
BMS continuous discharge: 200A
BMS continuous charge: 200A
BMS over current protection: 220A for 10 seconds, reset 35 seconds.
———————————————————–
250A BMS option
BMS continuous discharge: 250A
BMS continuous charge: 250A
BMS over current protection: 270A for 10 seconds, reset 35 seconds.
———————————————————–
Low voltage discharge shut down: 20v restart 21v
High Voltage charge disconnect: 30v restart 29.6v
Low temp charge disconnect: 1c reset 2c
Low temp discharge disconnect -20c reset -15c
High temp charge disconnect: 55c reset 50c
High temp discharge disconnect: 60c reset 55c
Charging:
Bulk Charge: 28.4V – 29.2V (ideal: 28.8V)
Absorption: 28.4V – 29.2V (ideal: 28.8V)
Float: 26.8V – 27.2V (ideal: 27.0V)
Terminal size: M10
Vent outlet thread: 1/2 inch male BSP thread
Sealed back riveted case made from zinc plated and powder coated steel with high temp sealant
Weight 40.5kgs
The automotive-grade cells used in this model are designed to withstand 3000 cycles at 80% depth of discharge under heavy electric vehicle use.
For instance, cycling the battery daily—bringing it down to 20% state of charge and fully recharging it—would take approximately 8.2 years to complete 3000 cycles before the battery is regarded as end of life, degrading to 80% of its original capacity while remaining operational for some time thereafter.
In less demanding applications such as caravan storage, you can expect longer cycle life.
24v 200Ah Dimensions
Mounting feet feature 8mm hole.
If mounting feet tabs need to be removed due to space reasons the tabs can be cut off but please ensure you do not cut into the battery box itself as this will void warranty.
